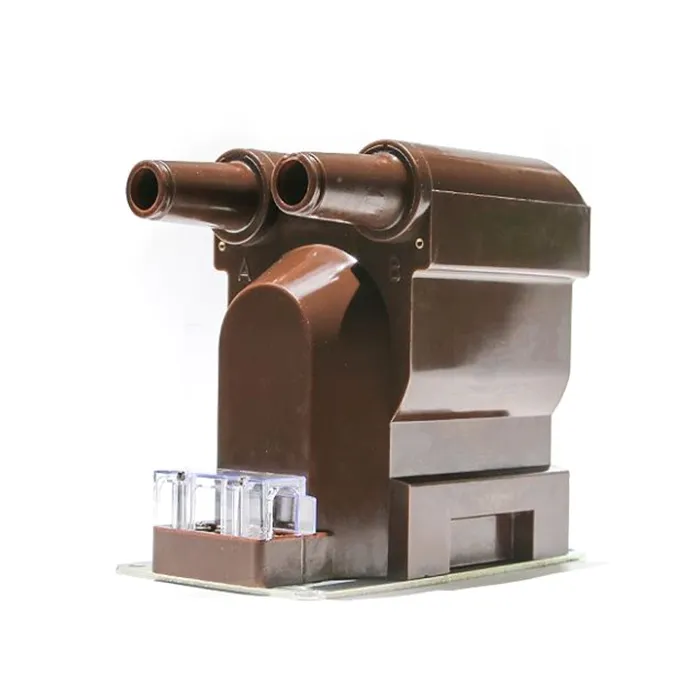

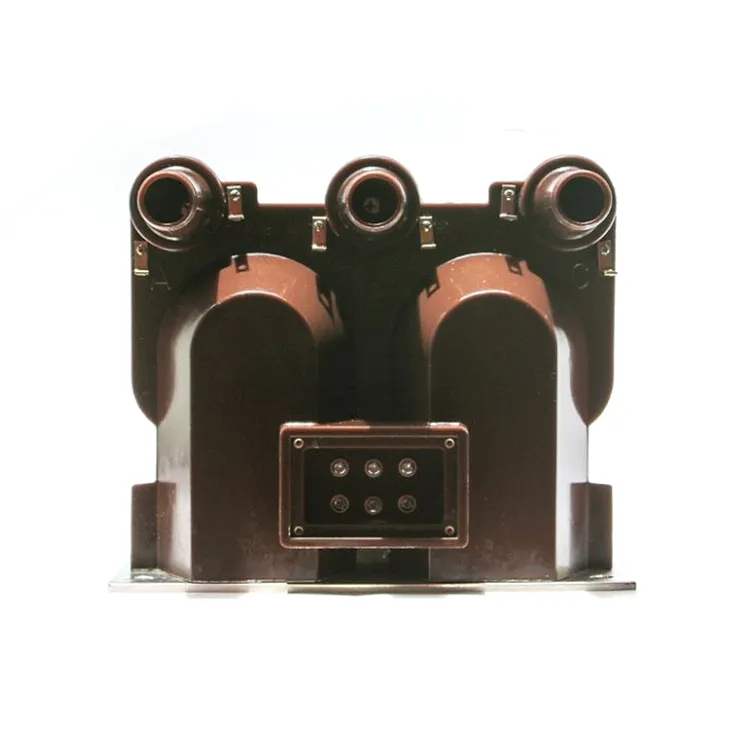

11kv driefasige meetpotentiaaltransformator Pt

Producteigenschappen:

1: Compact ontwerp:

the 11kv three phase metering potential transformer pt is integrated into a single housing. It saves space and fits the compact layout of GIS.

2. Hoge meetnauwkeurigheid:

Nauwkeurig ontworpen kern en wikkelingen zorgen voor consistente spanningsverhoudingen en fase-uitlijning over alle drie fasen, om te voldoen aan zowel meet- als beveiligingsvereisten.

3. Uitstekende isolatieprestaties:

the insulation materials of 11kv three phase metering potential transformer provide high voltage withstand capability and resistance to partial discharge, suitable for SF6 gas insulated environments.

4. Eenvoudige installatie en onderhoud

Compact and integrated design reduces terminals and support structures, simplifying wiring and facilitating installation and future maintenance.

5. Hoge betrouwbaarheid en veiligheid

The 11kv three phase metering potential transformer pt is capable to withstand short term over voltage and external faults, to make the safe operation of downstream instruments and protection devices.

6. Aanpassingsvermogen aan zware omgevingen

The 11kv three phase metering potential transformer pt is resistant to temperature variations, humidity, and corrosion, to allow stable operation in indoor, outdoor, and polluted conditions.

Technische specificatie:

Veelgestelde vragen over producten:

Q: What maintenance practices are recommended for 11kv three phase metering potentiële transformatoren?

A: Regelmatige onderhoudspraktijken omvatten:

1.Visuele inspecties: Controleer op fysieke schade, corrosie of tekenen van oververhitting.

2.Cleaning: Remove dust and debris to prevent insulation breakdown.

3. Testen: voer periodiek isolatieweerstands- en verhoudingstests uit.

4.Calibration: Ensure accuracy by calibrating against known standards.

5. Goed onderhoud zorgt voor een lange levensduur en betrouwbare prestaties van PT's.

Q: What is the primary function of an 11kV three phase metering potential transformer?

A: An 11kV three phase metering potential transformer is designed to step down the primary voltage to a lower, standardized secondary voltage, typically 110V, for accurate measurement and monitoring of electrical parameters in primary voltage systems. The 11kV three phase metering potential transformer pt allows metering instruments and protection relays to operate safely and effectively.

Vraag: Wat zijn de typische nauwkeurigheidsklassen die beschikbaar zijn voor een 11kV driefasige meetpotentiaaltransformator pt?

A: Accuracy classes commonly include 0.2, 0.5, and 1.0 for metering, and 5P10 or 10P10 for protection, according to IEC 61869. The required accuracy depends on whether the PT is being used for revenue metering or for relay protection functions.
